TF UltraReach™ Wireless System
- TechFuture Innovations presents a secure, long-range, and ultra-reliable wireless control system — completely battery-powered and internet-free. Originally designed and deployed for passenger safety at railway platforms, it now powers automation and safety in smart homes, industries, infrastructure, and public transport.
- With encrypted communication for complete privacy, one-touch operation, and rugged design, the system enables safe, immediate, and wire-free control of lights, alarms, appliances, or machinery — even in remote or offline locations.
- Whether you’re switching a light in a remote yard, triggering a safety alert on a train platform, or activating machinery from a secure distance in an industrial environment, this system ensures full reliability, efficiency, safety, and complete independence from complex networks.
Key Applications
Smart homes
- Wirelessly switch ON/OFF lights, fans, power sockets, or critical appliances — with no dependency on Wi-Fi, smart hubs, or local network — and enjoy an exceptional control range of up to 10 km.
Industrial Automation
- Remotely control machines, alarms, safety locks, production triggers or shutdown systems in emergency, high-noise, or physically inaccessible industrial zones.
Infrastructure & Utility Management
- Operate gates, motors, pumps, and lighting systems across large outdoor or remote sites — even where internet or power lines are not feasible.
Public Transport & Safety Systems
- Remotely and instantly trigger visual/audible indicators for safety, access control, or operator alerts

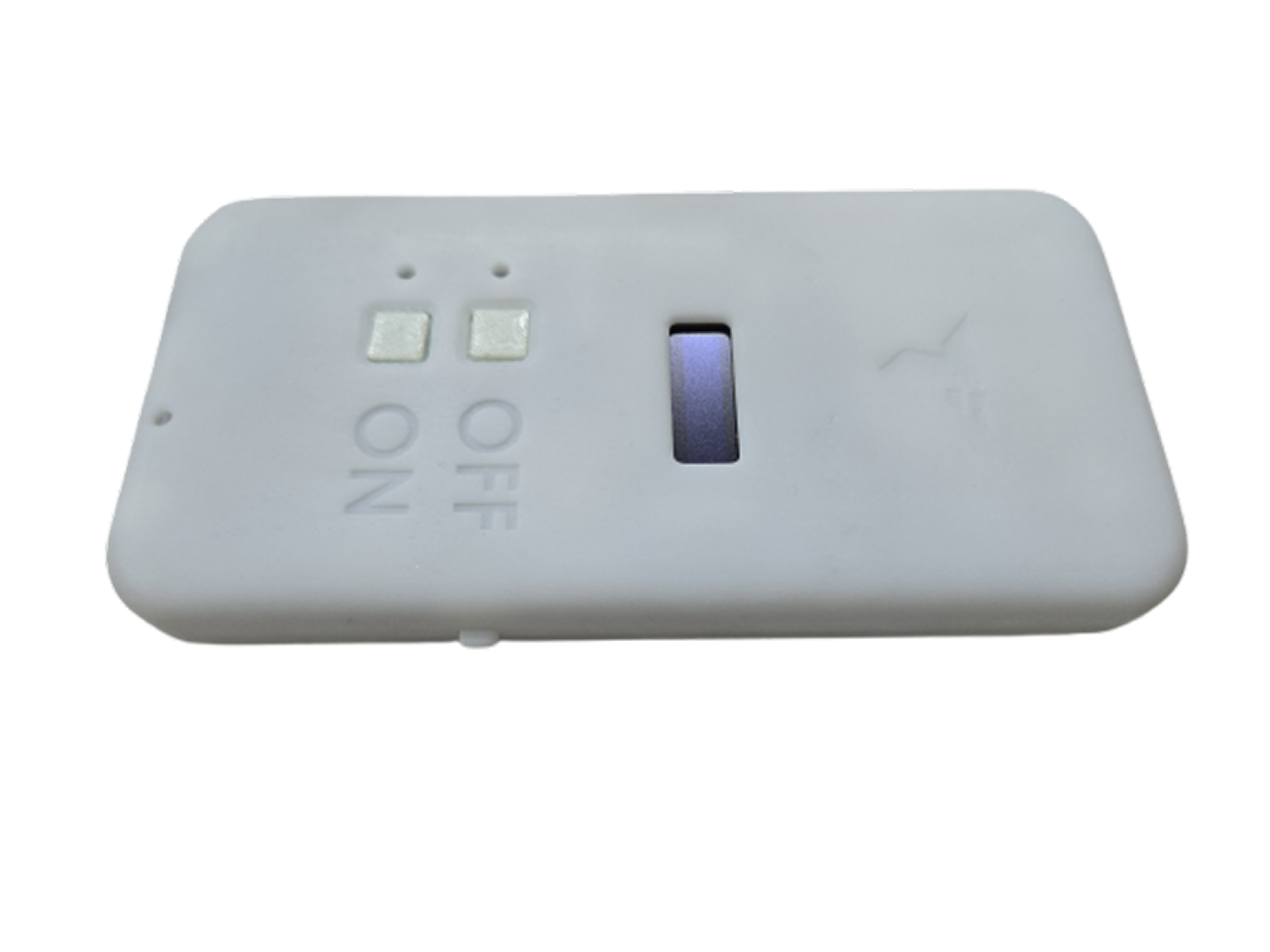

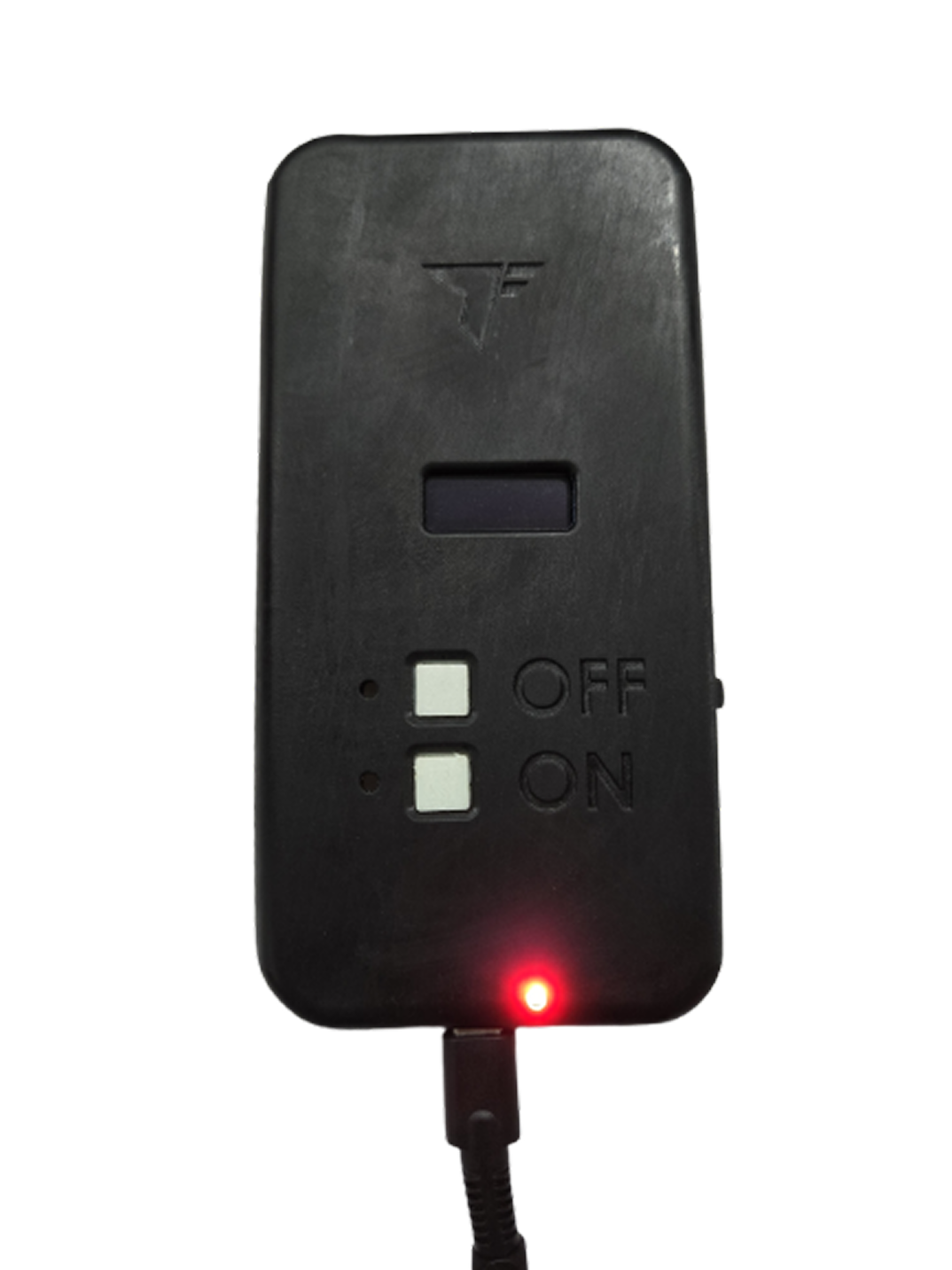

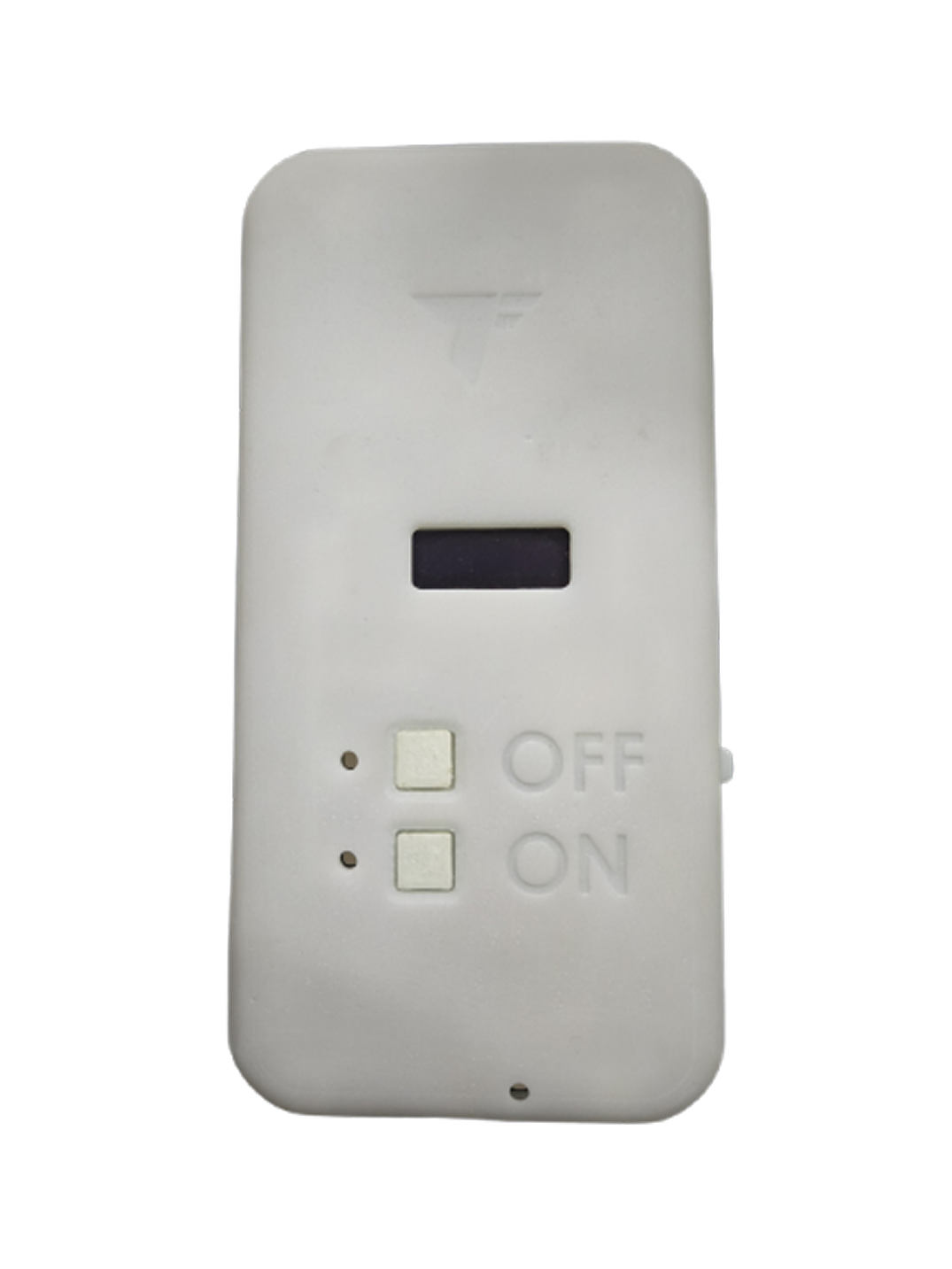

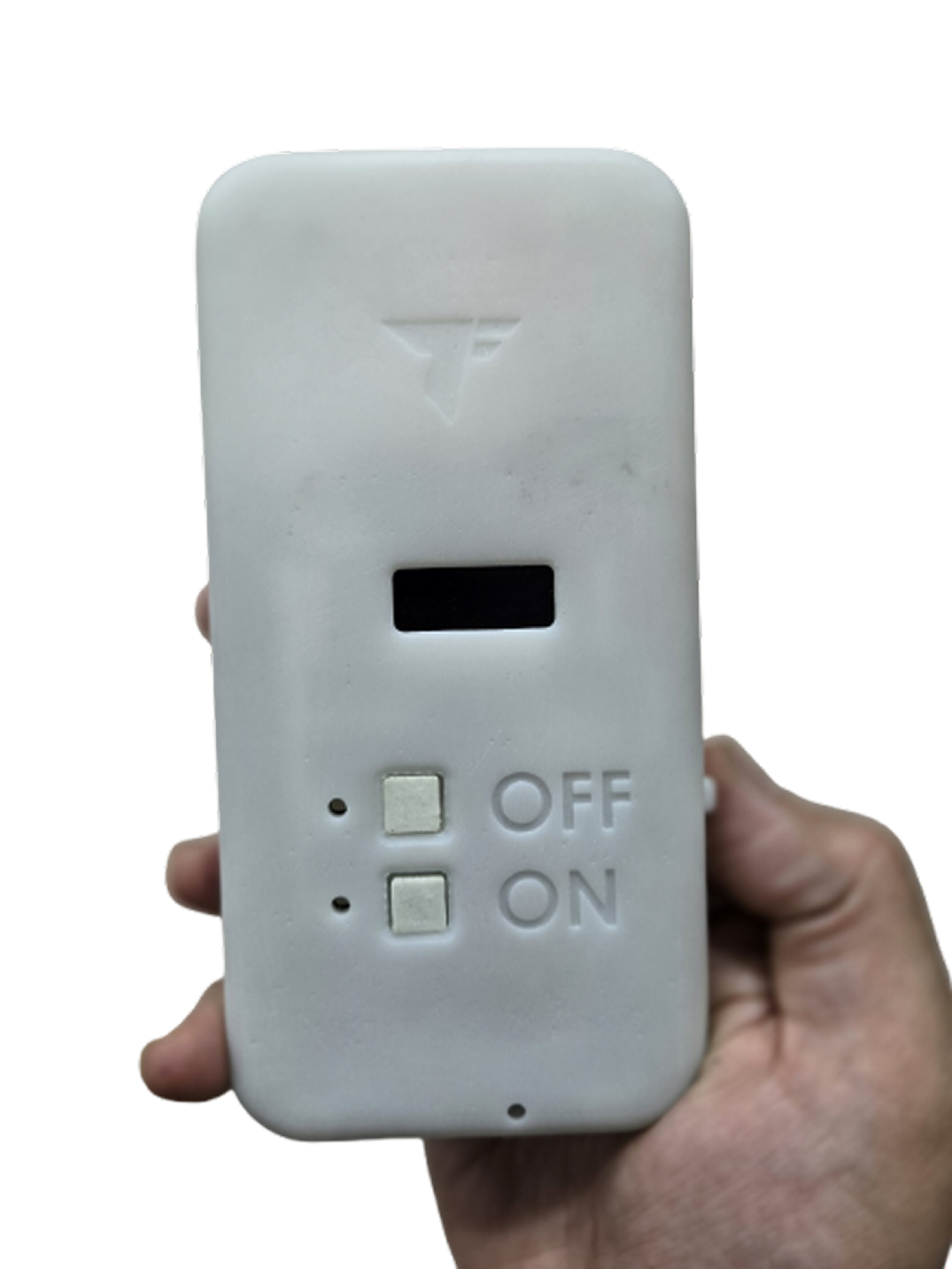

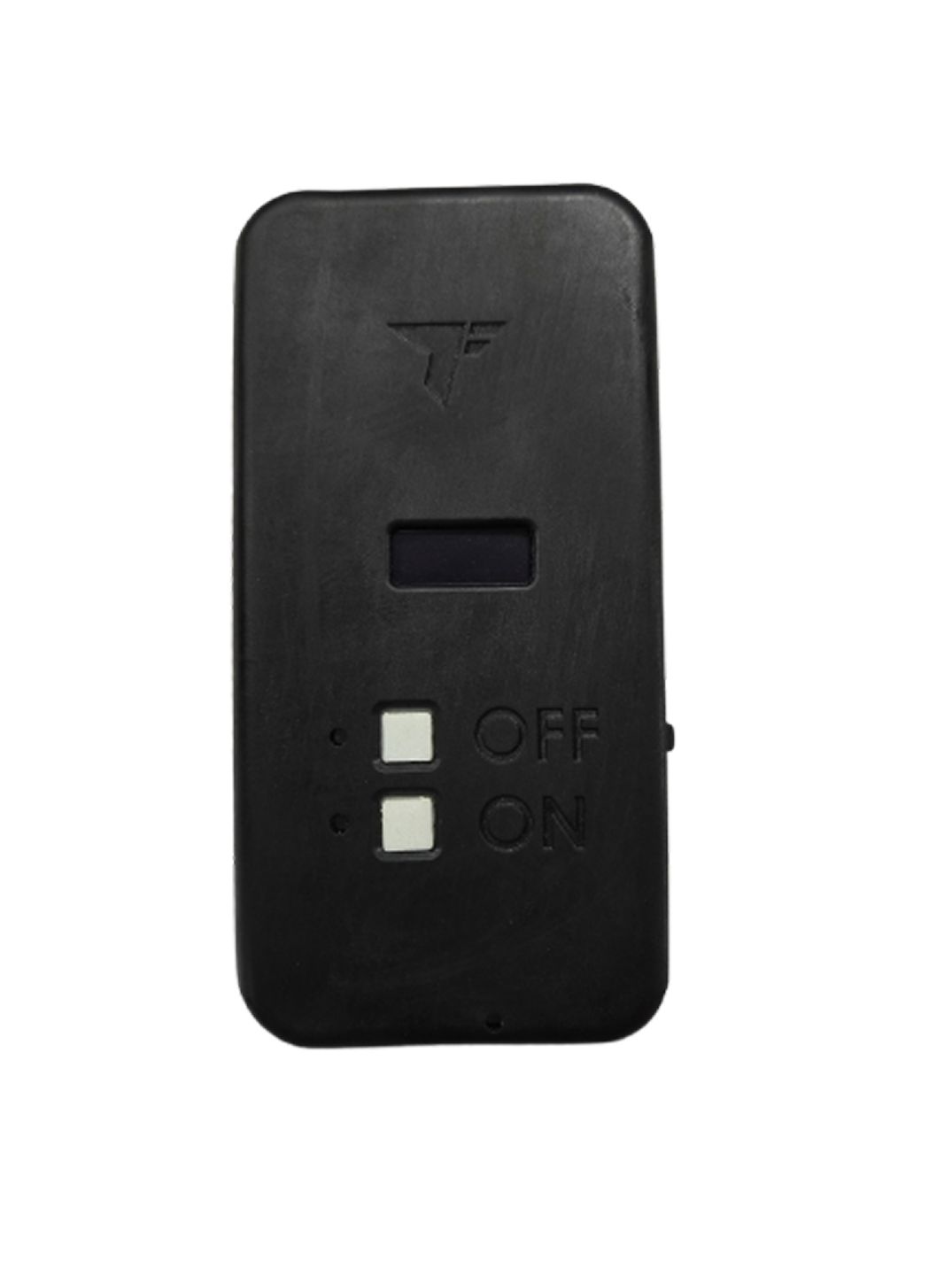

Remote Device Features
1″ OLED Display
Always-on screen showing live battery percentage and charging status in real time.
2 Control Buttons (9mm × 9mm)
Tactile, clearly labeled ON/OFF buttons with built-in LED indicators for visual press feedback.
Dedicated Power Button
Toggle switch to turn the remote ON/OFF manually — helps conserve battery when not in use.
Positive Action Feedback
Each button press displays confirmation text (“ON” or “OFF”) on the screen along with corresponding LED glow.
6000mAh Li-ion Battery
Delivers 7+ days of continuous use even in 24×7 operation.

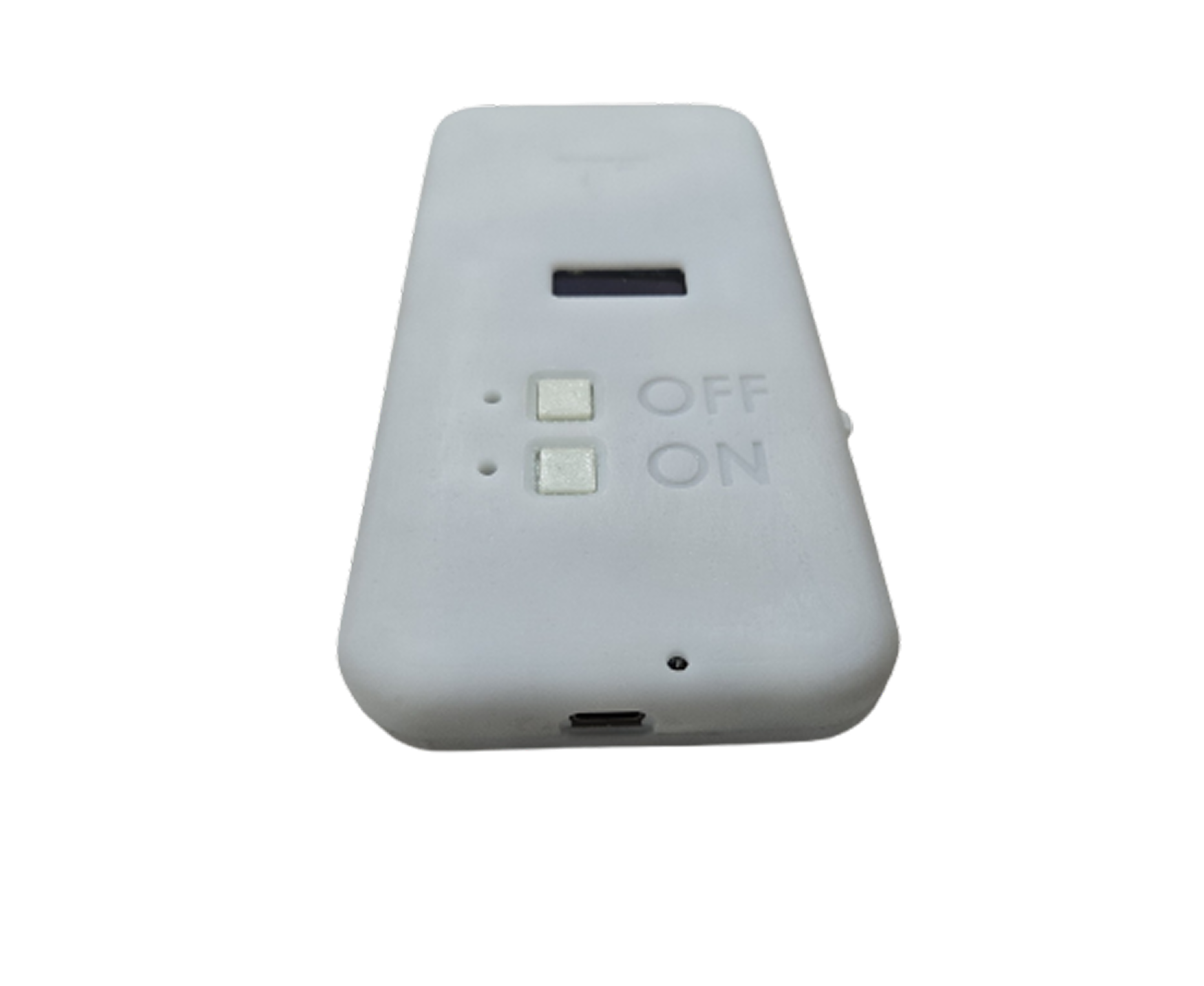

Smart Charging via Type-C Port
Compatible with all standard USB Type-C chargers; auto-cutoff protection after full charge.
Compact & Durable Design
Size: 104mm × 73mm × 21mm — ergonomically enclosed casing designed for strong grip and field durability.
Wireless Technology & Specs
Wireless Coverage
Up to 1–2 km in dense urban areas and up to 10 km in open/rural environments.
Secure Wireless Communication
Built-in security protocols protect against eavesdropping, unauthorized access, or interference — ensuring safe and private operation in all conditions.
Frequency Range
Fully configurable between 862 MHz to 1020 MHz to comply with regional regulations and avoid interference.
Default Frequency Band
Operates in the 865–868 MHz ISM band, ideal for license-free, long-range communication in India and Europe.
Bandwidth Options (Configurable)
0: 7.8 kHz (not recommended – over spec)
1: 10.4 kHz (not recommended – over spec)
2: 15.6 kHz
3: 20.8 kHz
4: 31.25 kHz
5: 41.7 kHz
6: 62.5 kHz
7: 125 kHz (default)
8: 250 kHz
9: 500 kHz
1: 10.4 kHz (not recommended – over spec)
2: 15.6 kHz
3: 20.8 kHz
4: 31.25 kHz
5: 41.7 kHz
6: 62.5 kHz
7: 125 kHz (default)
8: 250 kHz
9: 500 kHz
Radiated Power
84 mW – optimized for long-range performance within duty cycle regulations
signal
Strong signal penetration and noise resistance. Ideal for noisy environment
Why Choose TechFuture’s System?
Proven in Real-World Deployments
- Successfully implemented at 38 DMRC stations covering 63 platforms, ensuring safety-critical performance in high-traffic environments.
Versatile Across Industries
- Designed for railways, homes, industries, and infrastructure — one system, many possibilities.
Long-Range, Reliable Communication
- Delivers 1–2 km coverage in urban areas and up to 10 km in open zones with excellent signal stability.
No Internet or Network Dependency
- Operates independently — ideal for remote areas or mission-critical environments where wired/wireless networks are unreliable or absent.
Highly Secure Communication
- Robust encryption and RF protocol safeguards ensure privacy and protection from signal interception or misuse.
Compact, Rugged, and User-Friendly Design
- Ergonomic remote with visual feedback, long battery life, and simple one-touch control — engineered for field conditions.
Customizable Frequency & Bandwidth Settings
- Tune wireless performance to meet specific regulatory, range, or battery requirements.
Low Maintenance, High Efficiency
- Designed for 24×7 usage with minimal support, auto-charge cutoff, and robust battery performance.
Multi-Device Synchronization
- One remote can control multiple endpoints in parallel — saving time and enabling coordinated signaling/control across zones.
