TF Non-Contact Voltage Detection and Indication System
- Advanced Non-Contact Sensing: A state-of-the-art system capable of detecting high voltage (120V to 33kV and above) from a distance—up to 15 meters—without any physical contact.

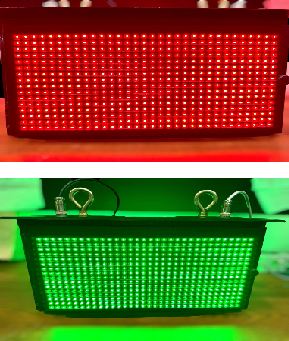

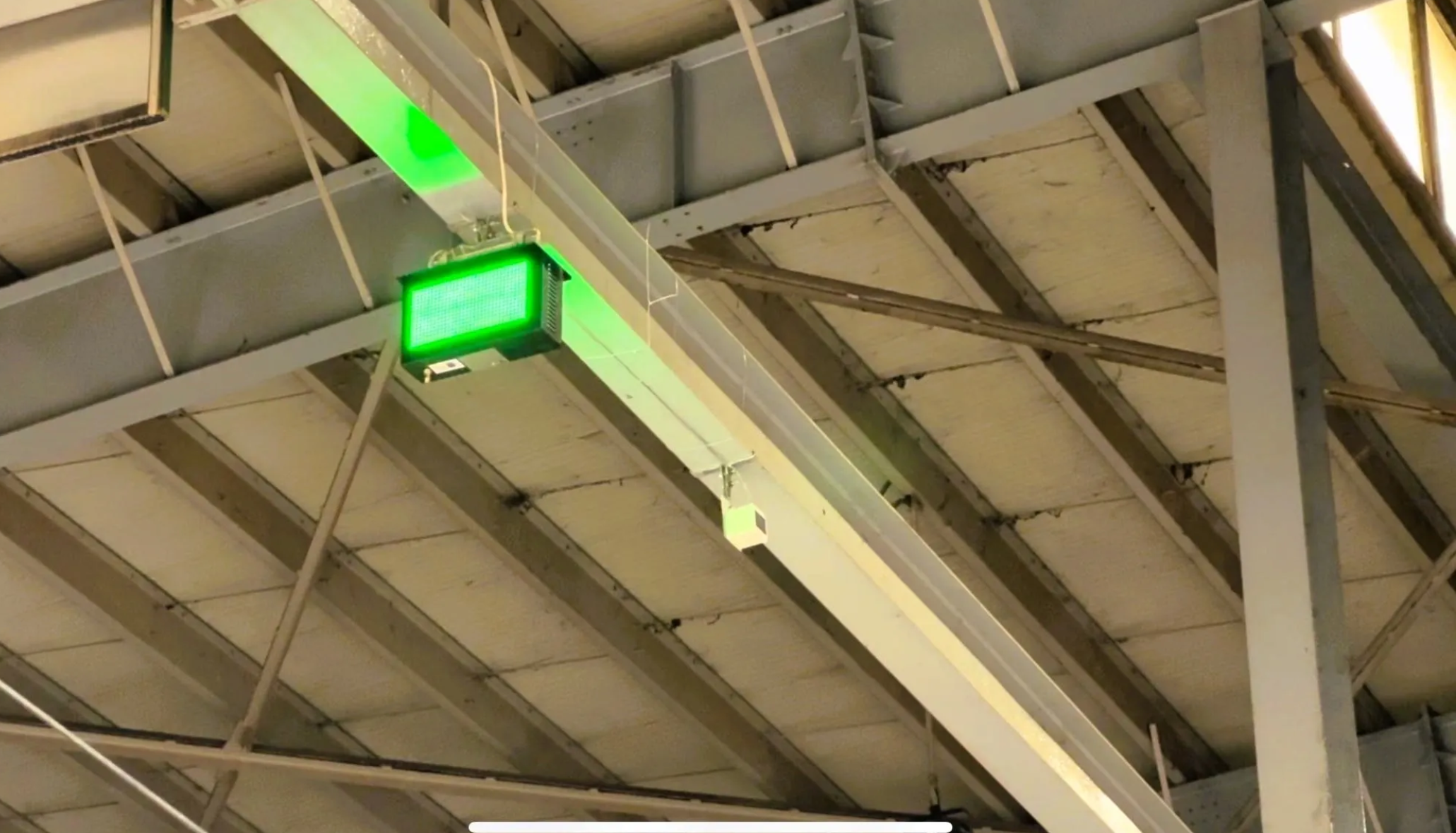

- Clear Visual Indicators: Equipped with a dual/single side LED display that clearly shows
- RED – Voltage Present
- GREEN – Voltage Absent
- YELLOW – Sensor Failure
- Wired Signal Extension: The RED, GREEN, and YELLOW indications can also be extended through wired outputs, enabling integration with external alarm, display, or automation systems.
- Adjustable Sensing range: Configurable via built-in Wi-Fi UI; users can set cutoff voltage and sensitivity (1–5) to fine-tune detection range based on operational needs.
- Robust and Reliable Design: Maintenance-free sensor with high efficiency and built to operate in extreme conditions (−30°C to +70°C, up to 5000 meters altitude).
- Versatile Deployment: Suitable for industrial, railway (OHE), and high-voltage environments. Comes with waterproof or non-waterproof enclosures, 12”x6” display (customizable), and rugged connector interfaces.
- Smart Connectivity: Built-in Wi-Fi enables real-time adjustment through an easy-to-access web interface.
- Proven Detection Range:
- 240V: Up to 2 meters
- 11kV: Up to 5 meters
- 25kV: Up to 10 meters
- 33kV: Up to 15 meters

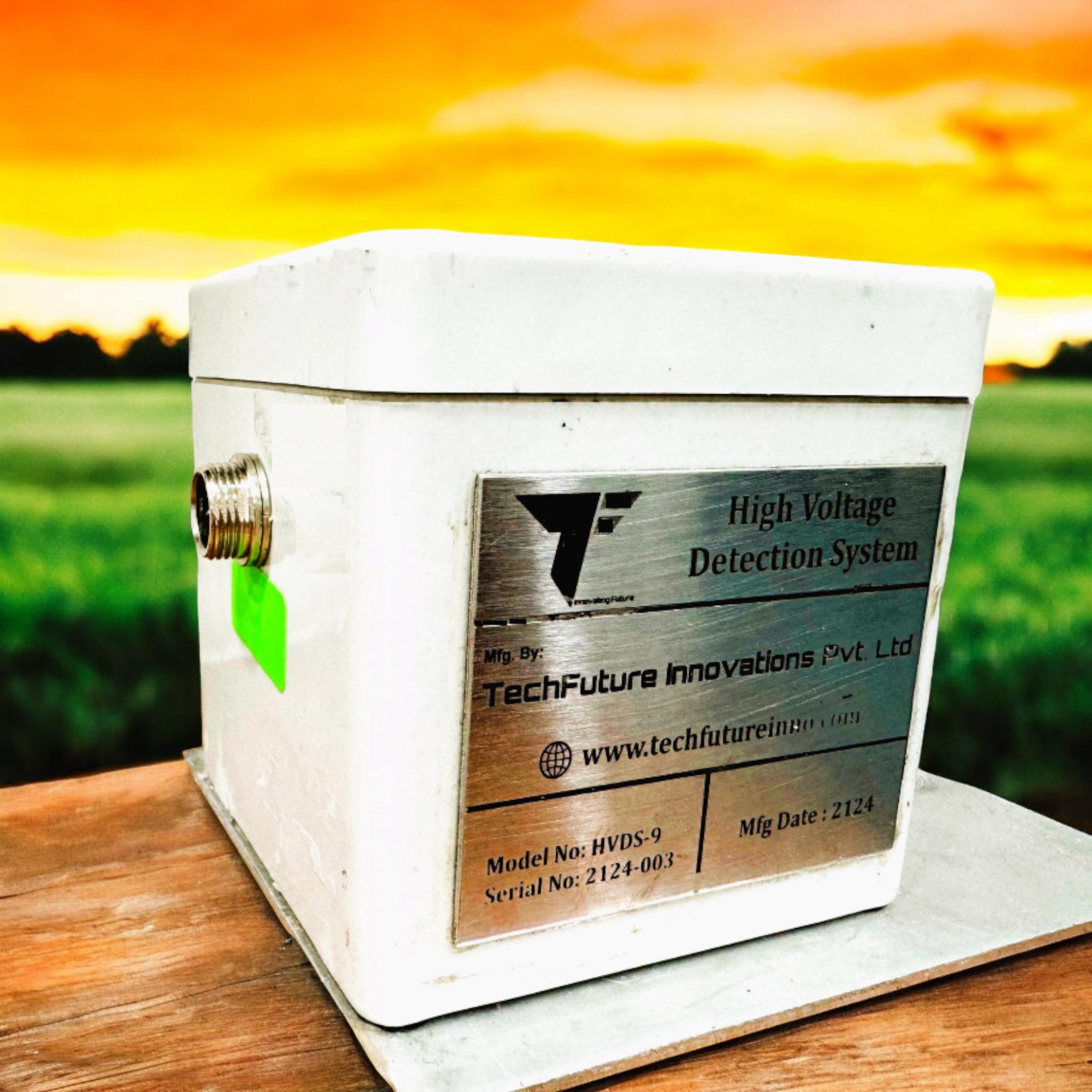

Sensor Specifications
Power Input
- Input Voltage: 5–12V DC
- Battery backup (optional)
- Protections: Short circuit, Reverse polarity
- Cooling: Free air convection
Operating Conditions
- Operating Temperature: −30°C to +70°C
- Operating Altitude: Up to 5000 meters
- Enclosure Options: Enclosed (non-waterproof and waterproof)
Detection Capability
- Sensing Voltage Range: 240V – 33kV AC and above
- Contactless Sensing Distance:
- 240V: Up to 2 meters
- 11kV: Up to 5 meters
- 25kV: Up to 10 meters
- 33kV: Up to 15 meters
- Adjustable Detection Range: Sensitivity (1–5) and Cutoff Value configurable via Wi-Fi UI
Connectivity & Interface
- Sensor Communication: Built-in Wi-Fi for UI access
- Configuration: Cutoff value and sensitivity configurable via web-based UI
- Power Connector: Circular 2-pin/4-pin Male-Female OR USB Type-C
Communication with External system
Wi-Fi, Bluetooth, LoRa(Long Range), Wired
Mechanical
Size: 104mm × 73mm × 21mm — ergonomically enclosed casing designed for strong grip and field durability.
Weight: 200g
Indication Panel Specifications
Power Input
- Input Voltage: 85–264V AC (Auto-select)
- Surge Withstand: Up to 300V AC for 5 seconds
- Power Consumption: Approx. 17W
- Protections: Short circuit, overload, over-voltage
- Cooling: Free air convection
Operating Conditions
- Operating Temperature: −30°C to +70°C
- Operating Altitude: Up to 5000 meters
Display
- Type: LED display (Single side / Dual side configurable)
- Size: 12″ x 6″/24″ x 12″(Customizable on request)
- Visual Indicators:
- RED – Voltage Present
- GREEN – Voltage Absent
- YELLOW – Sensor Fault
Connectivity & Interface
- Power Connector: Circular 3-pin Male-Female
- Display Connector: Circular 2-pin/4-pin Male-Female
Communication with Sensor
Wi-Fi, Bluetooth, LoRa(Long Range), Wired
Signal Output (Optional)
- RED, GREEN, and YELLOW signal outputs extendable via wire for integration with external systems
Mechanical
Weight : 5.4kg
Why Choose TechFuture’s System?
Truly Non-Contact Detection
- Detects AC voltages from 240V to 33kV+ without touching the wire ensures operator safety from a safe distance.
Long-Range Sensing
- Industry-leading detection distance — up to 15 meters for 33kV lines, 10 meters for 25kV, and 2 meters even for 240V.
Real-Time Visual Alerts
- Clear LED display indicators with intuitive color codes (RED – Voltage Present, GREEN – Voltage Absent, YELLOW – Sensor Fault).
Adjustable Range through UI
- Fine-tune detection range and threshold via Wi-Fi-based user interface, no special app needed — just connect and configure through a web browser.
Maintenance-Free & Reliable
- No moving parts, no calibration required. Designed for continuous, long-term use with high efficiency, reliability and durability.
External System Communication
- The sensor can communicate or send signals to external systems through Wi-Fi, Bluetooth, LoRa or Wire
Signal Extension Capability
- Sensor and indication panel can be installed at different locations, allowing voltage detection in one place and indication at another — ideal for hard-to-reach or dangerous areas. It also enables integration with external alarm, display, or automation systems.
Customizable Display Options
- Available in dual or single side configurations; display size adjustable as per site or customer requirement.
Field-Proven in Harsh Environments
- Works from −30°C to +70°C, and up to 5000 meters altitude — ideal for both indoor and outdoor setups.
Rugged, Industrial-Grade Build
- High-quality enclosures (non-waterproof & IP65 waterproof), with secure circular connectors for both sensor and display units.
Developed In-House with Full Support
- Entire system is R&D driven, designed, and manufactured by TechFuture Innovations — ensuring prompt support, customization, and future upgrades.

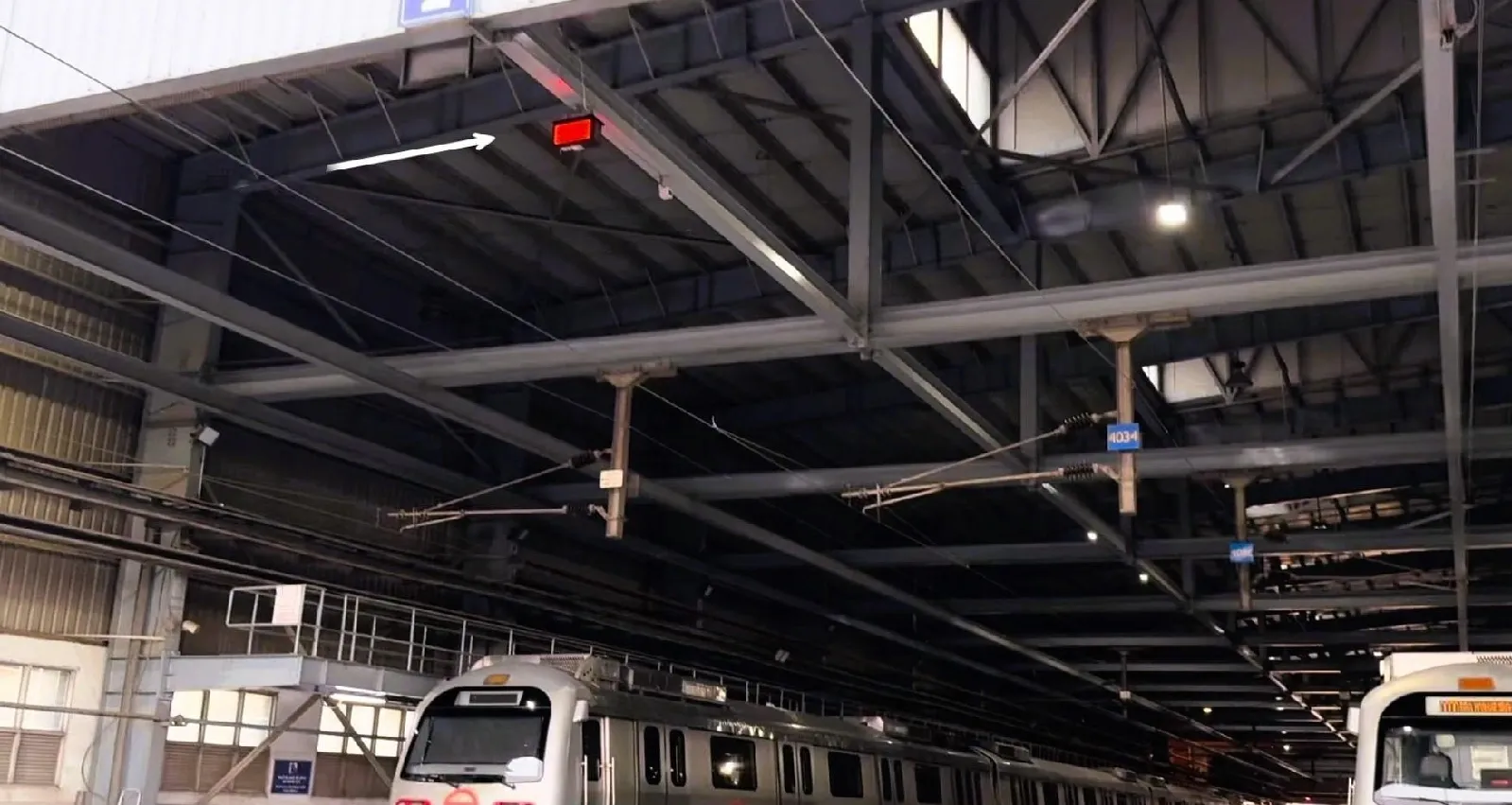

Trusted by Metro & Rail Projects
- Already field-tested and deployed in Overhead Equipment (OHE) voltage monitoring for high voltage railway systems.
